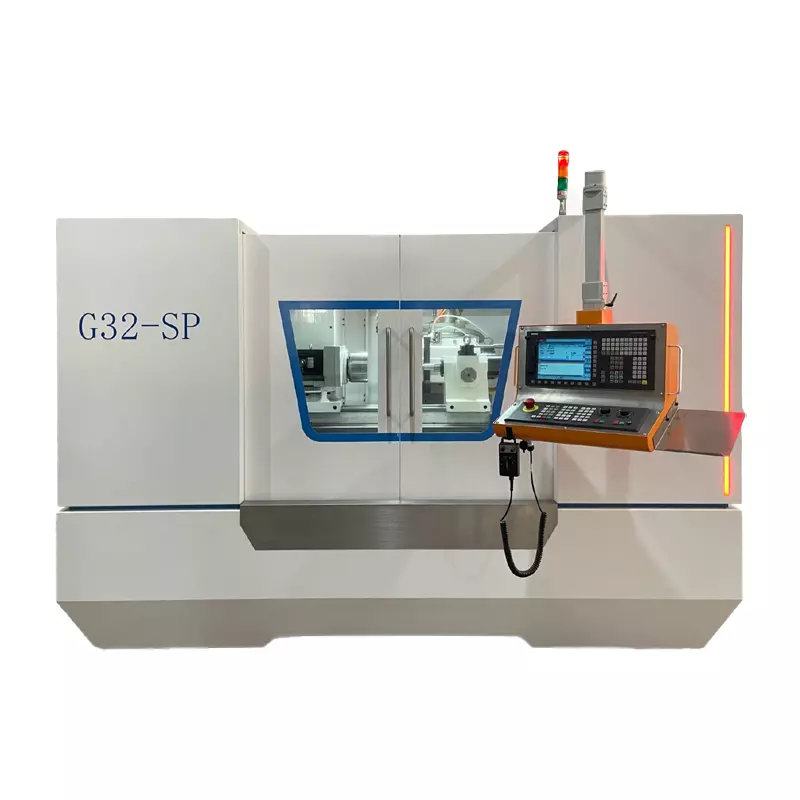

G32-SP compound internal and external cylindrical grinding machine
MOQ: 1 Pieces
Delivery time: 15 Day
Center Distance Between Two Centers: 580mm
Headstock Center Height: 203mm
Maximum Workpiece Weight Supported by Centers: 100kg
X-Axis Travel: 260mm
Z-Axis Travel: 700mm
Product Details
| X-axis equipped with HEIDENHAIN linear encoder, resolution: 0.0001 mm | Equipped with a high-precision rotary mechanical headstock, compatible with three-jaw chucks, magnetic chucks, or dead center mounting. |
| X-axis positioning accuracy: <1.5 µm, repeatability: <1 µm, minimum feed increment: 0.1 µm | Features a micro-adjustable tailstock. |
| Z-axis positioning accuracy: <1.5 µm, | Operates with a Siemens 828D CNC system. |
| Repeatability: <1 µm (when equipped with HEIDENHAIN linear encoder) |
Roundness ≤ 1.5 µm |
| Minimum feed increment: 0.1 µm |
Longitudinal dimensional consistency ≤ 3 µm |
| Equipped with servo-driven rotary table with hydraulic clamping |
Surface finish ≤ Ra 0.4 |
| Equipped with servo-driven rotary table with hydraulic clamping | Includes a Tokyo Seimitsu face measuring instrument as standard, with an optional outer diameter measuring instrument. |
| 11 kW high-power internal grinding spindle, max. speed: 24,000 rpm |
