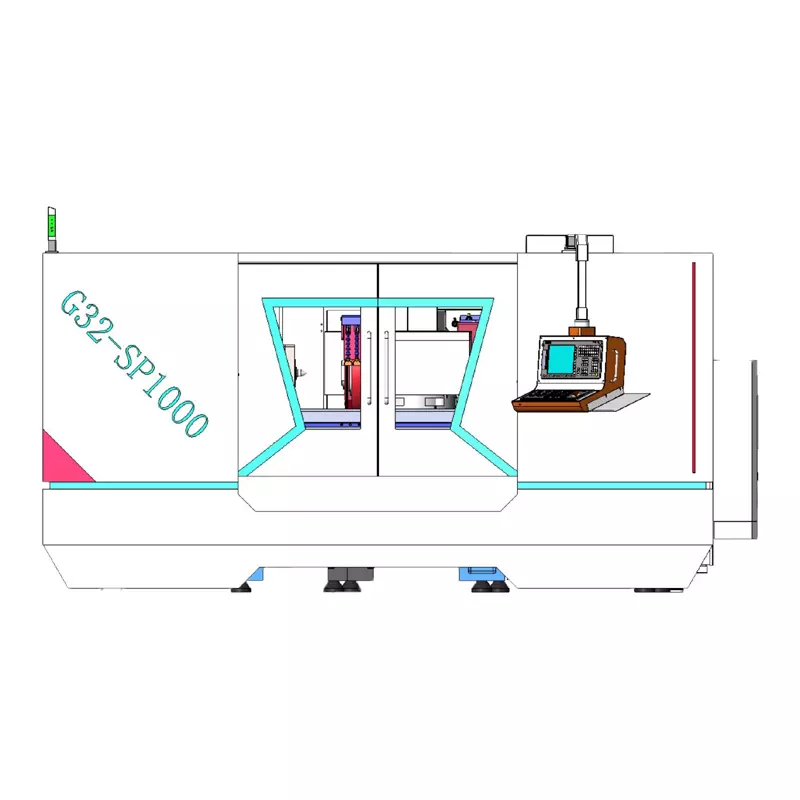

G32-W CNC cylindrical grinding machine

Product Overview

This CNC cylindrical grinding machine is a high-precision and high-efficiency modern grinding equipment, specially designed for the precise processing of rotating parts such as shafts, sleeves, and stepped shafts. Adopting CNC numerical control systems, it realizes automated grinding and is suitable for high-standard processing requirements in industries such as automobiles, aerospace, military, and precision machinery.

Core features

Ultra-high precision processing

Processing accuracy: Roundness ≤0.001mm, cylindricity ≤0.002mm/100mm, surface roughness Ra≤0.1μm (mirror grinding is optional).

Numerical control system: Equipped with high-end numerical control systems from FANUC/Siemens, it supports multi-axis linkage and has an automatic compensation function to ensure long-term stability.

High-rigidity structure: It adopts a natural granite base and high-precision linear guides to reduce thermal deformation and enhance dynamic rigidity.

2. Intelligent control

Automatic tool setting and measurement: Integrated online measurement system (optional Mar/Renishaw probe), real-time monitoring of workpiece dimensions, and automatic correction of grinding allowance.

Adaptive grinding: AI algorithms optimize grinding parameters, automatically adjusting the feed rate based on material hardness and allowance to extend the service life of the grinding wheel.

Remote monitoring: Supports IoT networking, enabling cloud-based management of production data, facilitating remote diagnosis and process optimization.

3. Efficient production

High-speed spindle: It adopts electric spindle or hydrostatic spindle, with a maximum speed of 5,000 rpm, meeting the requirements of high-efficiency and precision grinding.

Automatic loading and unloading (optional) : Paired with robots or mechanical arms, it enables unmanned production and is suitable for batch processing.

Quick model change: Modular grinding wheel frame design, supporting multiple grinding methods such as outer circle, conical surface, and end face, with convenient switching.

4. Environmental Protection and safety

Low-energy consumption design: Driven by servo motors, it saves 30% energy compared to traditional hydraulic systems.

Oil mist recovery system: Effectively filters grinding dust and oil mist, in compliance with ISO 14001 environmental protection standards.

Safety protection: Fully enclosed protective cover + emergency stop device, in compliance with CE safety certification.
